Product Parameter
| Product model | MT8 |
| Driving style | Side drive |
| Fuel category | Diesel |
| Engine model | Yuchai4102 Supercharged engine |
| Engine power | 81KW( 11 0hp) |
| Gearbox model | 545(12-speed high and low speed) |
| rear axle | DF1092 |
| front axle | SL184 |
| Braking method | Automatically air-cut brake |
| Front wheel track | 1760mm |
| Rear wheel track | 2100mm |
| Wheelbase | 3360mm |
| Frame | Height 200mm * width60mm * th ickness 10mm, |
| Unloading method | Rear unloading double support |
| front model | 750-16 mining tire |
| rear mode | 825-16 mining tire(double tire) |
| Overall dimension | Lenght:6100mm*width2200mm*height1760mm height of the shed 2.1m |
| Cargo box dimension | Length4600mm*width2200mm*heght750mm |
| cargo box plate thickness | Bottom 4m m side 3mm |
| Steering system | Hydraulic steering |
| Leaf springs | 15pieces*width70mm*thickness12mm |
| Cargo box volume(m³) | 7 |
| Oad capacity /ton | 8 |
| Climbing ability | 12° |
Features
The front wheel track is 1760mm, and the rear wheel track is 2100mm, with a wheelbase of 3360mm. The frame has dimensions of height 200mm * width 60mm * thickness 10mm and utilizes a rear unloading double support method. The front tires are 750-16 mining tires, while the rear tires are 825-16 mining tires (double tire configuration).
The overall dimensions of the vehicle are "Length: 6100mm * width 2200mm * height 1760mm, with a shed height of 2.1m." The cargo box dimensions are Length 4600mm * width 2200mm * height 750mm. The cargo box plate thickness is 4mm at the bottom and 3mm on the sides.
The steering system is hydraulic, and the vehicle is equipped with 15 pieces of leaf springs with a width of 70mm and a thickness of 12mm. The cargo box has a volume of 7 cubic meters, and the load capacity is 8 tons. The vehicle can handle a climbing ability of 12°.

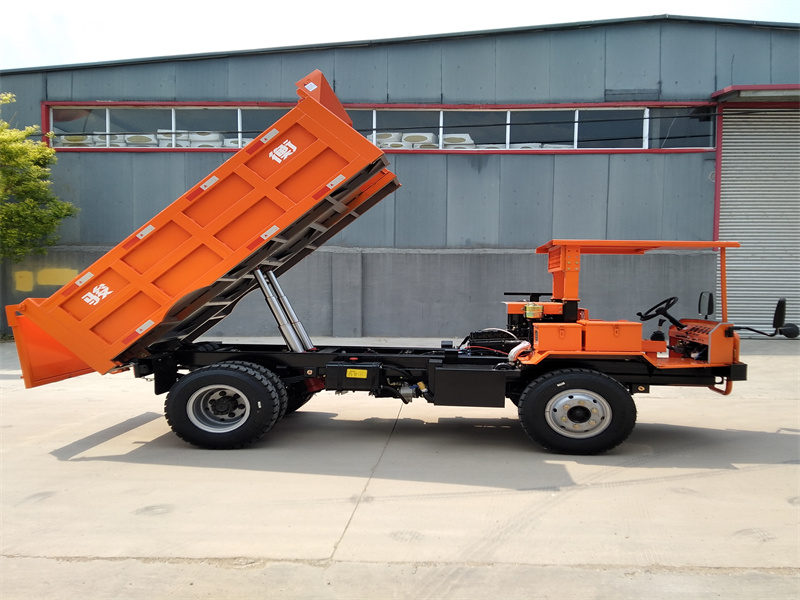

In summary, the MT8 mining dump truck possesses robust load-carrying capabilities and climbing performance, making it suitable for industrial environments like mines. It is highly effective in transporting and unloading materials such as ores.
Product Details
Frequently Asked Questions (FAQ)
1. Does the vehicle meet safety standards?
Of course, our mining dump trucks have been thoroughly tested and certified to international safety standards. We have taken every precaution to ensure our trucks meet the highest level of safety and they have successfully passed all required safety tests.
2. Can I customize the configuration?
Of course, we have the ability to make personalized configurations according to customer needs to effectively meet various work scenarios.
3. Which materials are used in body building?
Our bodies are constructed from high-strength, wear-resistant materials that ensure exceptional durability even under the harshest operating conditions.
4. What are the areas covered by after-sales service?
With our extensive global after-sales service coverage, we are able to provide support and assistance to customers around the world.
After-Sales Service
We offer a comprehensive after-sales service, including:
1. Give customers comprehensive product training and operation guidance to ensure that customers can correctly use and maintain the dump truck.
2. Provide rapid response and problem solving technical support team to ensure that customers are not troubled in the process of use.
3. Provide original spare parts and maintenance services to ensure that the vehicle can maintain good working condition at any time.
4. Regular maintenance services to extend the life of the vehicle and ensure that its performance is always maintained at its best.
