Product Parameter
| Product model | MT5 |
| Fuel category | diesel |

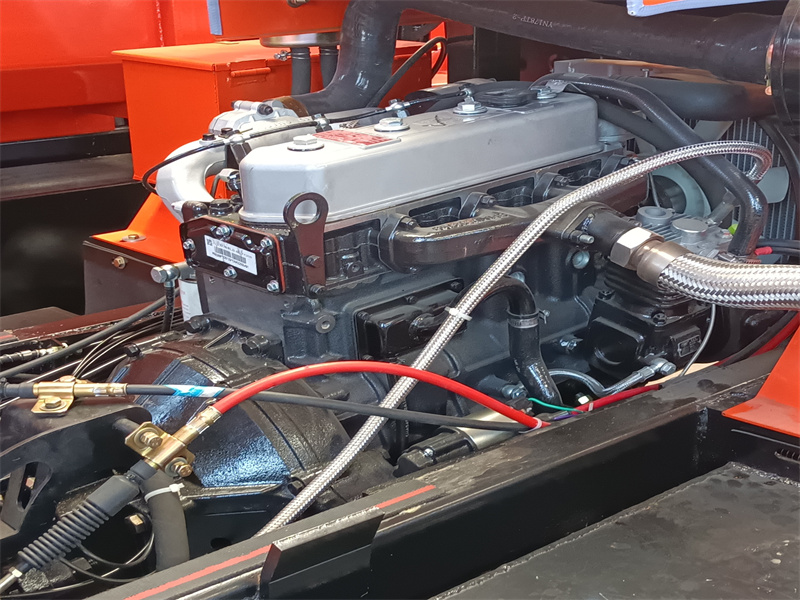

| Engine model | Xichai490 |
| Engine power | 46KW(63hp) |
| gearbox model | 530(12-speed high and low speed) |
| rear axle | DF1069 |
| front axle | SL178 |
| Drive mode, | rear drive |
| Braki ng method | automatically air-cut brake |
| Front wheel track | 1630mm |
| Rear wheel track | 1630mm |
| wheelbase | 2400mm |
| frame | Main beam: height 120mm * width 60mm * thickness 8mm, Bottom beam: height 60mm * width 80mm * thickness 6mm |
| Unloading method | rear unloading 90*800 double support |
| front model | 700-16wire tire |
| rear model | 700-16 wire tire (double tire) |
| overall dimension | Lenght4900mm*width1630mm*height1400mm height of the shed 1.9m |
| cargo box dimension | Length3100mm*width1600mm*heght500mm |
| cargo box plate thickness | Bottom 8mm side 5mm |
| steering system | Hydraulic steering |
| Leaf springs | Front leaf springs :9pieces*width70mm*thickness12mm Rear leaf springs:13pieces*width70mm*thickne ss12m m |
| cargo box volume(m³) | 2.2 |
| load capacity /ton | 5 |
| climbing ability | 12° |
| Exhaust gas treatment method, | Exhaust gas purifier |
| Ground clearance | 200mm |
| Displacement | 2.54L(2540CC) |
Features
The frame consists of main beams and bottom beams, with dimensions of 120 mm (height) × 60 mm (width) × 8 mm (thickness) for the main beam and 60 mm (height) × 80 mm (width) × 6 mm (thickness) for the bottom beam. It unloads from the rear with a 90-degree, 800 mm double support system.
The front wheels are equipped with 700-16 wire tires, while the rear wheels have 700-16 wire tires (double tires). The overall dimensions of the truck are 4900 mm (length) × 1630 mm (width) × 1400 mm (height), with a shed height of 1.9 meters. The cargo box measures 3100 mm (length) × 1600 mm (width) × 500 mm (height), and the thickness of the cargo box plates is 8 mm for the bottom and 5 mm for the sides.
The steering system uses hydraulic steering, and the suspension system comprises 9 front leaf springs with a width of 70 mm and a thickness of 12 mm, as well as 13 rear leaf springs with a width of 70 mm and a thickness of 12 mm. The cargo box volume is 2.2 cubic meters, and it has a load capacity of 5 tons. The truck can handle a climbing angle of up to 12 degrees.
Exhaust gases are treated with an exhaust gas purifier, and the ground clearance is 200 mm. The engine displacement is 2.54 liters (2540 cc).
Product Details
Frequently Asked Questions (FAQ)
1. Does the vehicle meet safety standards?
Yes, our mining dump trucks meet international safety standards and have undergone a number of rigorous safety tests and certifications.
2. Can I customize the configuration?
Yes, we can customize the configuration according to customer needs to meet the needs of different work scenarios.
3. Which materials are used in body building?
We use high-strength wear-resistant materials to build our bodies, ensuring good durability in harsh working environments.
4. What are the areas covered by after-sales service?
Our extensive after-sales service coverage allows us to support and service customers around the world.
After-Sales Service
We offer a comprehensive after-sales service, including:
1. Give customers comprehensive product training and operation guidance to ensure that customers can correctly use and maintain the dump truck.
2. Provide rapid response and problem solving technical support team to ensure that customers are not troubled in the process of use.
3. Provide original spare parts and maintenance services to ensure that the vehicle can maintain good working condition at any time.
4. Regular maintenance services to extend the life of the vehicle and ensure that its performance is always maintained at its best.
