Product Parameter
| Product model | EMT4 |
| Cargo box Volume | 1.6m³ |
| Rated load capacity | 4000kg |
| Unloading height | 2650mm |
| loading height | 1300mm |
| Ground clearance | Front axle 190mm Rear axle 300mm |
| Turning radius | ≤5200mm |
| Wheel track | 1520mm |
| Wheelbase | 1520mm |
| climbing ability (heavy load) | ≤8° |
| Maximum lift angle of the cargo box | 40±2° |
| Lift motor | 1300W |
| Tire model | Front tire 650-16(mine tire)/rear tire 750-16(mine tire) |
| Shock absorption system | Front: 7peces*70mm width *12mm thickness/ Rear:9pieces*70mmwidth *12mmthickness |
| Operation system | Mediu m plate (hydraulic steering) |
| Controlsystem | Intelligent contro ller |
| Lighting system | Front and rear LED lights |
| Maximum Speed | 30km /h |
| Motor model/power | AC 10KW |
| No. Battery | 12 pieces, 6V,200Ah maintenance-free |
| Voltage | 72V |
| Overall dimension( | Length3900mm*Wid th 1520mm*Height130 0mm |
| Cargo box dimension(outer diameter ) | L en gth2600mm*Wid th 1500mm*Height450 mm |
| Cargo box plate thickness | Bottom 5mm side 3mm |
| Frame | Rec ta ngular tube welding ,50mm*120mm double beam |
| Overall weight | 1860kg |
Features
The EMT4 has a ground clearance of 190mm for the front axle and 300mm for the rear axle, allowing it to navigate uneven and rough terrains. The turning radius is less than or equal to 5200mm, providing good maneuverability in confined spaces. The wheel track is 1520mm, and the wheelbase is 1520mm, ensuring stability during operation.
The truck has an impressive climbing ability of up to 8° when carrying a heavy load, allowing it to handle inclines on mining sites. The maximum lift angle of the cargo box is 40±2°, enabling efficient unloading of materials.
Using a powerful 1300W lifting motor, the lifting mechanism runs smoothly and reliably. This tire model includes a front 650-16 mine tire and a rear 750-16 mine tire for superior traction and durability in mining environments.
To enhance shock absorption, seven springs with a width of 70 mm and a thickness of 12 mm are installed at the front. Likewise, the rear contains nine springs of equal width and thickness. This setup ensures a smooth and stable ride, even on challenging terrain.
The EMT3 is powered by an AC 10KW motor, which is driven by twelve maintenance-free 6V, 200Ah batteries, providing a voltage of 72V. This powerful electric setup allows the truck to reach a maximum speed of 25km/h, ensuring efficient transportation of materials within mining sites.
The overall dimensions of the EMT3 are: Length 3700mm, Width 1380mm, Height 1250mm. The cargo box dimensions (outer diameter) are: Length 2200mm, Width 1380mm, Height 450mm, with a cargo box plate thickness of 3mm. The truck's frame is constructed using rectangular tube welding, ensuring a sturdy and robust structure.
The EMT4 has a mid-plate that is hydraulically steered for optimum precision during operation. Its intelligent controller ensures that truck control is both efficient and user-friendly. Additionally, the truck is equipped with LED lights front and rear to ensure visibility even in low light conditions.
The maximum speed of the EMT4 is 30km/h, allowing for efficient transportation of materials within mining sites. The truck is powered by an AC 10KW motor, driven by twelve maintenance-free 6V, 200Ah batteries, providing a voltage of 72V.
The overall dimensions of the EMT4 are: Length 3900mm, Width 1520mm, Height 1300mm. The cargo box dimensions (outer diameter) are: Length 2600mm, Width 1500mm, Height 450mm, with a cargo box plate thickness of 5mm at the bottom and 3mm on the sides. The truck's frame is constructed using rectangular tube welding, featuring a 50mm*120mm double beam for strength and durability.
The overall weight of the EMT4 is 1860kg, and with its robust design, high load capacity, and reliable performance, it is an ideal choice for heavy-duty material transportation in mining operations.

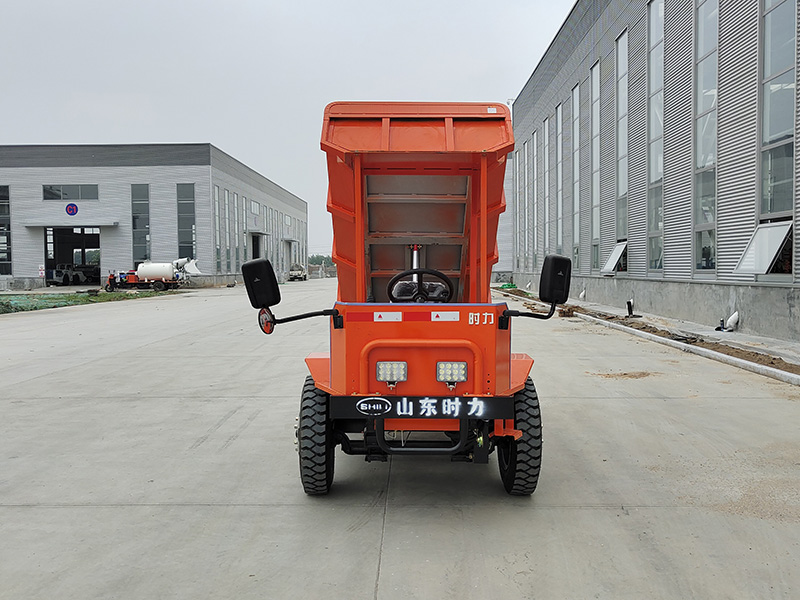

Product Details
Frequently Asked Questions (FAQ)
1. What should be noted for maintenance of the mining dump truck?
Regular maintenance is essential to ensure the continuous and efficient operation of your mining dump truck. You should follow the maintenance schedule provided in the product manual and regularly inspect critical components such as the engine, brake system, lubricants, tires, etc. Additionally, keeping the vehicle clean and periodically clearing the air intakes and radiators are crucial steps to maintain proper functioning.
2. Does your company provide after-sales services for the mining dump trucks?
Yes, we offer comprehensive after-sales services. If you encounter any issues during usage or require technical support, you can contact us at any time. Our after-sales team will respond promptly and provide necessary assistance and support.
3. How can I place an order for your mining dump trucks?
Thank you for your interest in our products! You can get in touch with us through the contact information provided on our official website or by calling our customer service hotline. Our sales team will provide detailed product information and assist you in completing your order.
4. Are your mining dump trucks customizable?
Yes, we can offer customization services based on specific customer requirements. If you have special requests, such as different loading capacities, configurations, or other customization needs, we will do our best to meet your requirements and provide the most suitable solution.
After-Sales Service
We offer a comprehensive after-sales service, including:
1. Give customers comprehensive product training and operation guidance to ensure that customers can correctly use and maintain the dump truck.
2. Provide rapid response and problem solving technical support team to ensure that customers are not troubled in the process of use.
3. Provide original spare parts and maintenance services to ensure that the vehicle can maintain good working condition at any time.
4. Regular maintenance services to extend the life of the vehicle and ensure that its performance is always maintained at its best.
