Product Parameter
| engine | BF4L914/BF4L2011/B3.3 | Maximum climbing capacity | 25° |
| hydraulic pump | Variable pump py 22 / Ao 90 series pump / Eaton Lopump | maximum dump clearance | Standard equipment: 1180mm high unloading: 1430mm |
| fluid motor | Variable motor mv 23 / Eaton hand controlled (electric controlled) variable motor | Maximum unloading distance | 860mm |
| brake assembly | Set working brake, parking brake in one, using spring brake Hydraulic release brake | minimum turning radius | 4260mm (outside) 2150mm (inside |
| Bucket Volume (SAE stack) | 1m3 | steering locking angle | ±38° |
| Maximum shovel force | 48kn | outline dimension | Machine width 1300mm Machine height 2000mm captain (transport status) 5880mm |
| running speed | 0-10km/h | Complete machine quality | 7.15t |
Features
Maximum Dump Clearance: The standard equipment provides a dump clearance of 1180mm high, but it can be increased to 1430mm during unloading. This indicates the maximum height to which the machine can lift its dump bed or bucket during unloading.
Fluid Motor: The machine can be equipped with Variable Motor MV 23 or Eaton hand-controlled (electric-controlled) variable motor. These motors drive specific machine functions.
Maximum Unloading Distance: The maximum distance the machine's dump bed or bucket can extend during unloading is 860mm.
Brake Assembly: The machine has a set working brake that also serves as a parking brake, using a spring brake mechanism.
Hydraulic Release Brake: This brake system likely provides hydraulic assistance for braking operations.
Minimum Turning Radius: The machine has a minimum turning radius of 4260mm on the outside and 2150mm on the inside. This indicates the tightest turning circle the machine can achieve.
Bucket Volume: The machine's bucket has a volume of 1m³ based on the SAE standard.
Steering Locking Angle: The machine's steering system can turn the wheels up to ±38° from the center position.
Maximum Shovel Force: The maximum force that the machine's shovel or bucket can exert is 48kN.
Outline Dimension: The machine's dimensions are as follows: machine width is 1300mm, machine height is 2000mm in captain mode (presumably when operated), and the transport status height is 5880mm.
Running Speed: The machine's speed can range from 0 to 10 km/h.
Complete Machine Quality: The overall weight of the complete machine is 7.15 tons.
This shovel loader boasts a powerful propulsion system, excellent maneuverability, impressive unloading capabilities, and a reliable braking system, making it suitable for loading, unloading, and transportation tasks in engineering, construction, and similar fields.

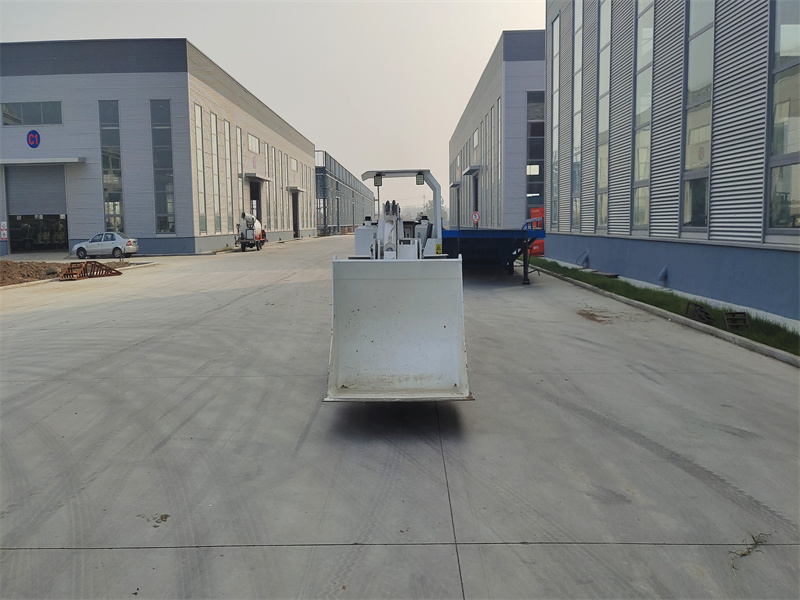

Product Details
Frequently Asked Questions (FAQ)
1. Does the vehicle meet safety standards?
Yes, our mining dump trucks meet international safety standards and have undergone a number of rigorous safety tests and certifications.
2. Can I customize the configuration?
Yes, we can customize the configuration according to customer needs to meet the needs of different work scenarios.
3. Which materials are used in body building?
We use high-strength wear-resistant materials to build our bodies, ensuring good durability in harsh working environments.
4. What are the areas covered by after-sales service?
Our extensive after-sales service coverage allows us to support and service customers around the world.
After-Sales Service
We offer a comprehensive after-sales service, including:
1. Give customers comprehensive product training and operation guidance to ensure that customers can correctly use and maintain the dump truck.
2. Provide rapid response and problem solving technical support team to ensure that customers are not troubled in the process of use.
3. Provide original spare parts and maintenance services to ensure that the vehicle can maintain good working condition at any time.
4. Regular maintenance services to extend the life of the vehicle and ensure that its performance is always maintained at its best.
